VIH - TriFlex
TriFlex

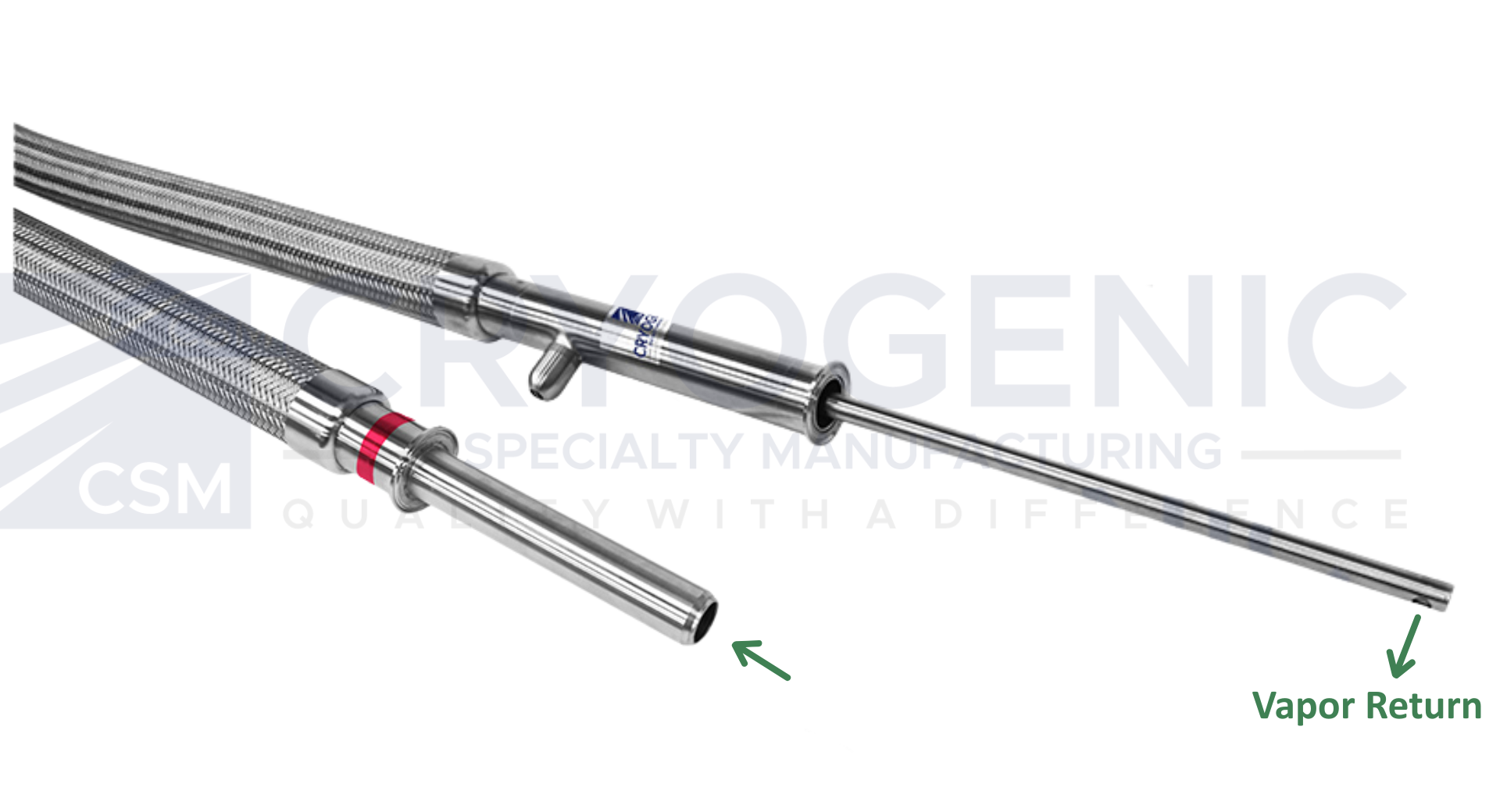

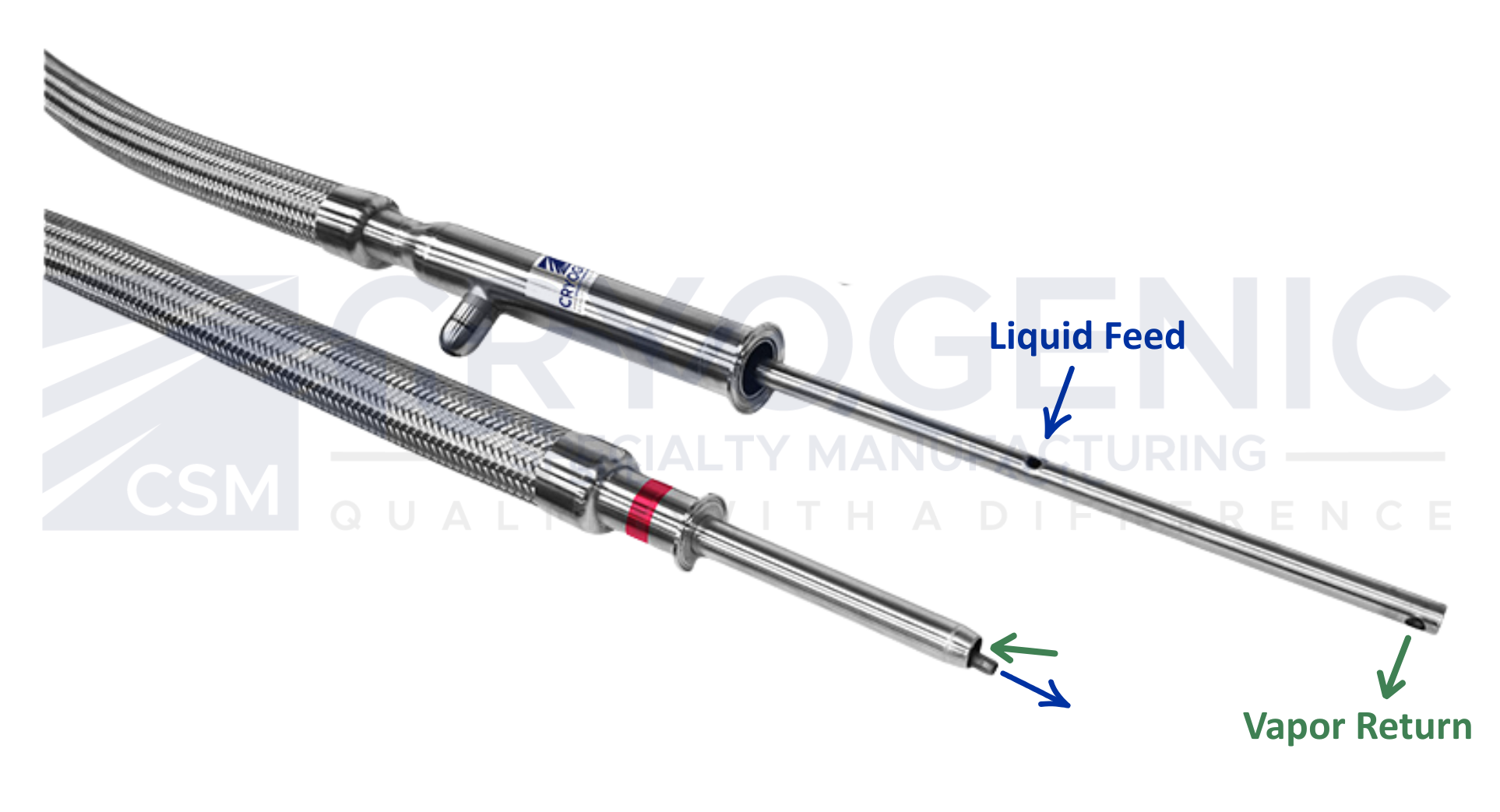

TriFlex vacuum-insulated hoses are specifically engineered to eliminate two-phase liquid nitrogen flow at the use point, making them essential for applications where pure, subcooled LN₂ is critical to process stability and performance. The triaxial hose design incorporates a dedicated vapor return path, ensuring consistent liquid quality and improved control at critical process interfaces.
Constructed entirely from stainless steel, TriFlex hoses provide maximum process purity and significantly extended service life. This robust design offers superior durability and cleanliness compared to conventional copper tubing solutions commonly used in similar applications.
Sizes and Vacuum Options
- Sizes
- DN16 (5/8" NB) to DN32 (1.375" NB)
- Vacuum Options
- Static Vacuum (with or without vacuum gauge DV-6R)
- Dynamic Vacuum (with or without jumper hose)
Configuration Options
- TriFlex Feed + Return Hose (Triax Hose)
- TriFlex Return Hose (Coax Hose)
TriFlex Feed + Return Hose (Triax Hose)
TriFlex Return Hose (Coax Hose)
Connection Options
-
Standard Connections
-
C-Series bayonets
-
-
Additional Connection Options
-
NPT Threaded Connections
-
-
Integration Options
-
Tee
-
Elbow
-
Valve
-
Gas-trap assemblies
-
Vacuum Warranty
-
3-years International Warranty
CryoFlex is backed by an industry-leading 3-years vacuum warranty, ensuring long-term durability, thermal efficiency, and peace of mind.
View Cutsheet:
Back to Overview:
Go to CSM CryoBlog to view TriFlex Application in Molecular Beam Epitaxy (MBE):
