NovoDoser Aseptic
Engineered from high-purity pharmaceutical-grade 316L stainless steel, the dosing system guarantees reliable performance (Log9 microbial-free liquid nitrogen) with steam-in-place sterilization and chemical-in-place sanitization for your aseptic production lines.
Key Features:
Line Speed
Up to 2000 CPM
Dose Accuracy
+/- 3%
Dose Pressure
0.4 psi
Sterility Level
Log9 microbial-free
Automated Aseptic Processing
Nitrogen purification (0.22 µm), &
Steam-In-Place (121 °C)
Design Compliance
ASME Bioprocessing Equipment (BPE)
Dose Duration
Minimum 10 ms
LN2 Supply Pressure
Up to 100 psi (6.8 bar)
Subcooled LN2
Ensures consistent LN2 density for precise, repeatable dosing
Nozzle Blanketing
Dosing nozzle frost-free protection during standby and production with self-generated nitrogen gas
Dose Synchronization
Perfectly timed and volume-controlled dosing, synchronized to container speed
Hygienic-Servo Dosing Valve
Wash-down design with IP67 rating, ensuring compliance with ultra-clean bottling requirements
Splash-Free Dosing
Soft-dose nozzle and lower dosing pressure minimize splashing
Quick Nozzle Defrost
Ultra-fast defrosting to maximize uptime and efficiency
Operating Languages
Available in English, German, Spanish, Portuguese, Chinese, Russian, and more
NovoDoser Warranty
5-years international warranty for vacuum loss
Controller Warranty
1-year international warranty for manufacturing defect

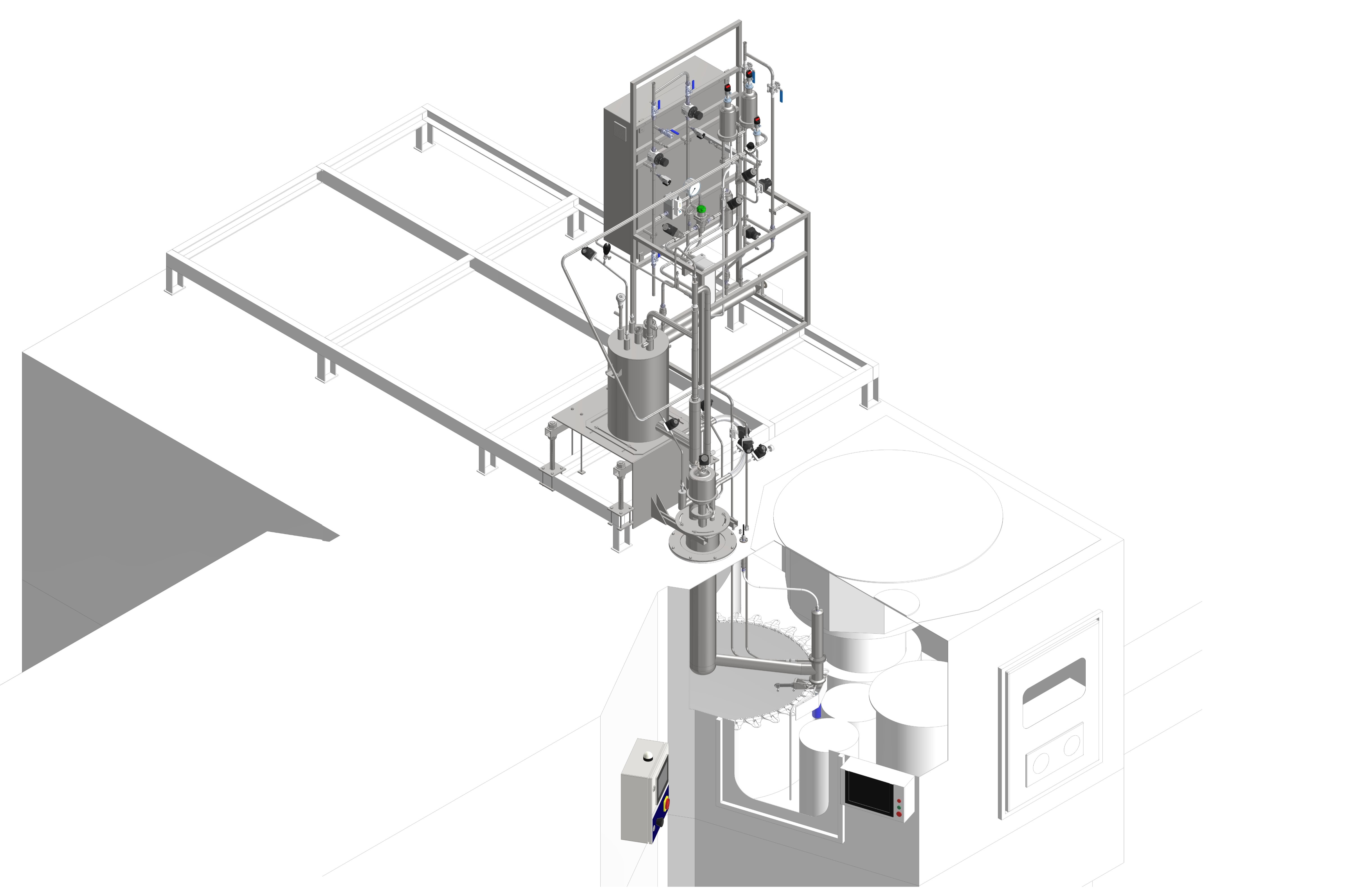

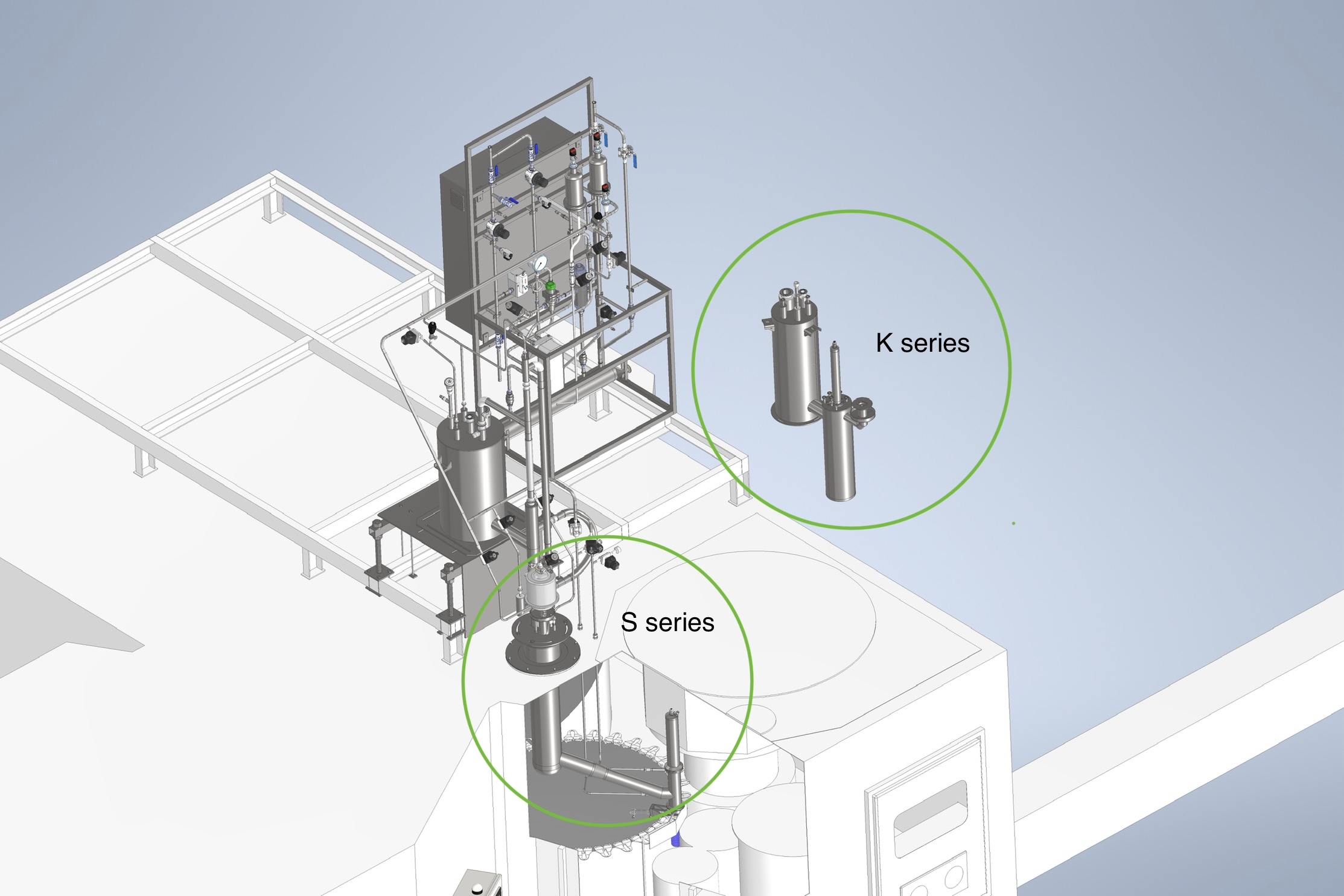

Full Illustration of Product Application:
Downloads:
Product Cutsheet:
Product Enquiry Form:
